China Cheap Suspension Clamp Factories – composite insulator – X.Y. Tower Detail:

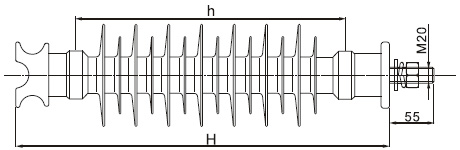

1.Size and technical data of 33kv pin post composite insulator
TYPE:FP-33/8
Rated voltage(KV)
|
Rated mechanical tension load(KN)
|
Structure height(mm)
H
|
Insulating
distance(mm)
h
|
Min nominal creepage distance(mm)
|
1min power frequency wet withstand voltage (kv)
|
Full wave lightning impulse withstand voltage(peak value)
|
33
|
8
|
417
|
338
|
1160
|
90
|
200
|
2.Materials of 33kv pin post composite insulator
1).Silicon Rubber for sheds/housing.
2).Glass-fiber reinforced epoxy resin rod (ECR type) for core.
3).Hot dip galvanized cast steel for metal fittings.
4).5000hours aging test from STRI Sweden & Prototype Test & Type Test & Factory Test ( Routine and Sampling Test ).
5).IEC / ANSI / GB standard.
Product detail pictures:
