220kV Hot Dip Galvanized Angular Steel Iron Terminal Tower

Tower Type: Terminal Tower

Voltage: 330kV

Material: Q235, Q355, Q420

Welding: AWS D1.1

Hot dip galvanizing: ASTM A123

Certificate: GB/T19001-2016/ISO 9001:2015

Application: Electric Power Transmission Line


Product Detail

Product Tags

WHO WE ARE

Our Team

⦁ Engineers team with average 20 years of work experience

⦁ One stop professional service is provided for overseas market

Our Story

⦁  a Chinese integrated electrical power company, mainly offers various electrical products to domestic and oversea energy utility companies and high-energy-usage industrial customers.

⦁  Specialize manufacturer in the field of 10kV-500kV transmission line tower/pole for electricity transmission and distribution, telecommunication tower/pole, substation structure, and steel fittings etc.

PROJECT SHOW

steel pole transmission line
power tower electricity
pylon tower

ITEM INFORMATION

Product Name Double Loop Across River Tower
Voltage Grade 220kV/330kV
Raw Material Steel Q235,345,A36,GR50
Surface Treatment Hot dip galvanized
Galvanized Thickness Average Layer Thickness 86um
Bolts 4.8;6.8;8.8
Certificate GB/T19001-2016/ISO 9001:2015
Lifetime More than 30 years
Manufacturing Standard GB/T2694-2018
Galvanizing Standard ISO1461
Raw Material Standards GB/T700-2006, ISO630-1995, GB/T1591-2018;GB/T706-2016;
Fastener Standard GB/T5782-2000. ISO4014-1999
Welding Standard AWS D1.1

TERMINAL TOWER FEATURES

1. The component layout is reasonable, and the force transmission route is direct, simple and clear.

2. Reasonably divide tower sections and sections to give full play to the bearing potential of components.

3. Convenient installation, operation and maintenance.

4. Actively apply high-strength steel.

5. Steel pipe structure shall be adopted for large section members with large stress to make their structure reasonable and save steel.

MATERIAL

Item Thickness of zinc coating
Standard and requirement ≧86μm
Strength of adhesion Corrosion by CuSo4
Zinc coat not be stripped and raised by hammering 4 times
 Galvanized standard ISO:1461-2002

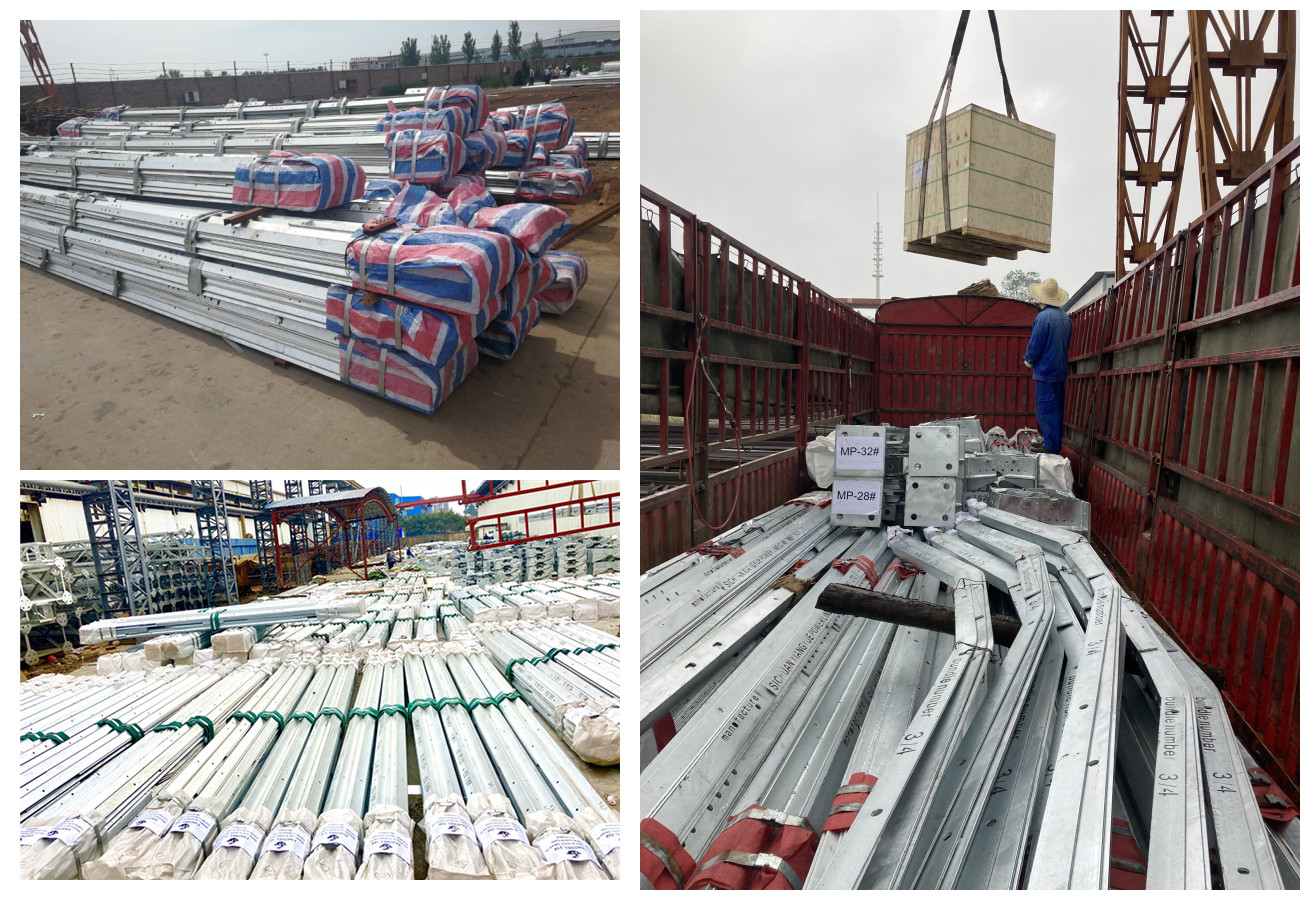

DELIVERY

Our company has a perfect logistics service system. Each of our products will be divided into parts suitable for transportation, which will be carefully packaged and sent to the port or the place designated by the buyer. The packing of the products is very easy to disassemble and protect the goods from damage.
